Silicone Rubber Anisotropic Conductive Sheet


Introduction
  • 40 µm / 23µm diameter metal pins are embedded into a silicone rubber matrix via proprietary techniques
  • P0.1 mm / P0.05 spacing – each individual pin provides a conductive path along the vertical axis while remaining insulated from adjacent pins
  • Applications:
    • Programming and testing of BGA, LGA, QFN, QFP, CSP, TSOP, and other IC packages
    • PCB-to-PCB junctions
    • DRAM and motherboard testing
    • Usage cases requiring finer pitch than traditional test pins can achieve

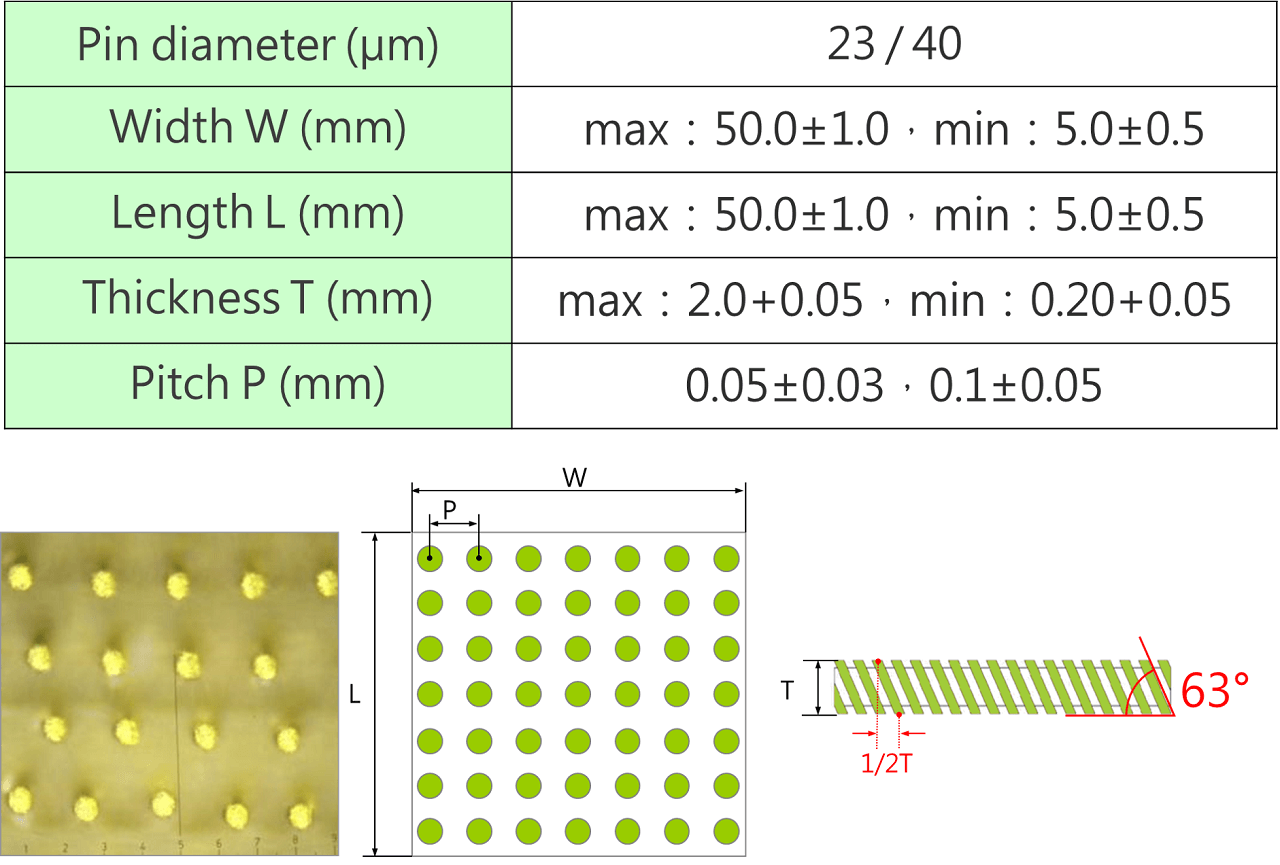

Specifications
  • Operating temperature: -35°C to 100°C



Features
  • Ultra-low electrical resistance
  • Excellent connectivity properties
  • Good compressibility and elasticity
  • High-reliability replacement for conductive films
  • Exceeds the limitations inherent to traditional pogo pins
  • Superior electrical properties vs. pressure conductive rubber (PCR) and anisotropic conductive film (ACF)
